Summary

Java Monitor

public synchronized void withdraw(int amount)
    throws InterruptedException {
    while (amount > balance) {
        wait();
    }
    balance -= amount;
    }
public synchronized void deposit(int amount) {
    balance += amount;
    notifyAll(); // put all waiting threads in "waiting room"
    // notify() wakes up a random thread
    // -> possible starvation!
    // still continue execution (signal & continue)
}
synchronized(this) {...}

Java Semaphore

this.upperLimit = new Semaphore(capacity, fair);
this.lowerLimit = new Semaphore(0, fair);

public void put(int amount) throws InterruptedException {
    upperLimit.acquire(amount);
    lowerLimit.release(amount);
}

public void get(int amount) throws InterruptedException {
    lowerLimit.acquire(amount);
    upperLimit.release(amount);
}

Java Thread Pool

ForkJoinPool threadPool = new ForkJoinPool();
// non-blocking
Future<Integer> future = threadPool.submit(() -> {
    // function with int return value
    // uncaught exceptions will be ignored!
})
// cancel task
// future.cancel()
// wait until completion (blocking)
int result = future.get()
// blocking submit
boolean found = threadPool.invoke(new CountTask());
// CountTask extends RecursiveTask<T>

// Java 8 Standard pool (implicit)
boolean found = new CountTask().invoke();

Completable Futures

CompletableFuture<Long> future =
    CompletableFuture.supplyAsync(() -> longOperation());
// other work
future.get();

// or supply continuation tasks
future.thenAccept(myTask); // without return value
future.thenApply(myTask); // with return value
CompletableFuture.allOf(future1, future2)
    .thenAccept(continuation);

CompletableFuture.any(future1, future2)
    .thenAccept(continuation);

Deadlocks

  • Für einen Deadlock müssen alle 4 Voraussetzungen erfüllt sein
    • Nested Locks
    • Zyklische Warteabhängigkeiten (Holt-Graph)
    • Gegenseitiger Ausschluss (Locks)
    • Sperren ohne Timeout / Abbruch

C# Monitor

// best practice
private object syncObject = new object();

public void Withdraw(decimal amount) {
    lock(syncObject) {
        while (amount > balance) {
            Monitor.Wait(syncObject);
        }
        balance -= amount;
    }
}
public void Deposit(decimal amount) {
    lock(syncObject) {
        balance += amount;
        Monitor.PulseAll(syncObject); // like notifyAll()
    }
}

C# Task Parallel Library

Task<int> task = Task.Run(() => {
    int total = ... // some calculation
    return total;
});
var result = task.Result; // blocking
// Run parallel tasks and wait for completion (barrier)
Parallel.Invoke(
    () => MergeSort(l, m),
    () => MergeSort(m, r)
);
// uses Striped Partitioner
Parallel.ForEach(list,
    file => Convert(file)
);
// Uses Range Partitioner
Parallel.For(0, array.Length,
    i => DoComputation(array[i])
);
// waits for all tasks to complete
// Task Continuation
task1.ContinueWith(task2).ContinueWith(task3);

PLINQ

ParallelQuery<Book> query =
    from book in bookCollection.AsParallel()
    where book.Title.Contains("Concurrency")
    select book;
    // no side effects!!
query.ForAll(b => {
    if (Interesting (b)) {
        Read(b);
    }
});

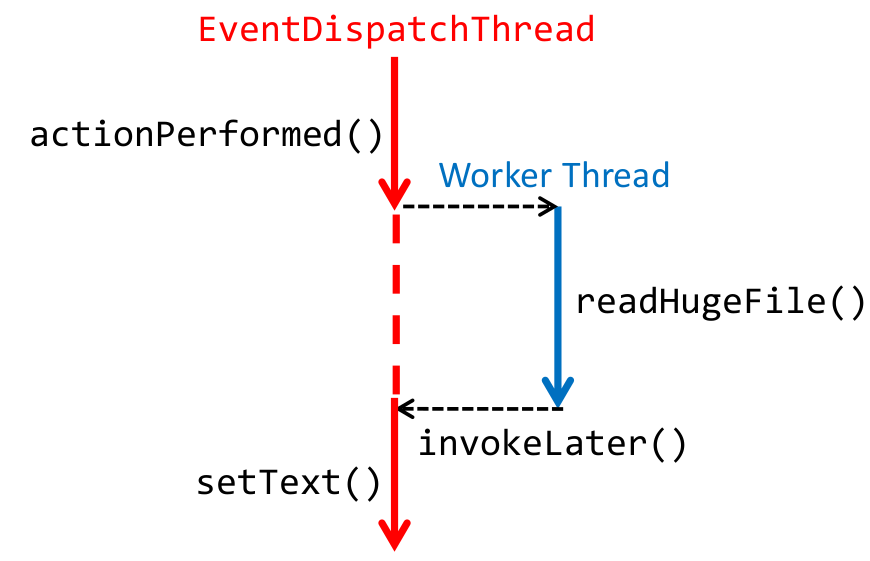

GUI-Programming

Java

button.addActionListener(event -> {
    // GUI-thread
    new Thread(() -> {
        String text = readHugeFile();
        SwingUtilities.invokeLater(() -> {
            // GUI Thread
            textArea.setText(text);
        });
    }).start();
});

Warning

Swing ist nicht thread-safe! Wenn ein anderer Thread auf das UI zugreift, gibt es keine Exception!

.NET

Mit TPL

Task.Factory.StartNew(() => {
    int result = LongCalculation(number);
    Dispatcher.BeginInvoke(new ThreadStart(() => {
        resultLabel.Content = result;
    }));
});

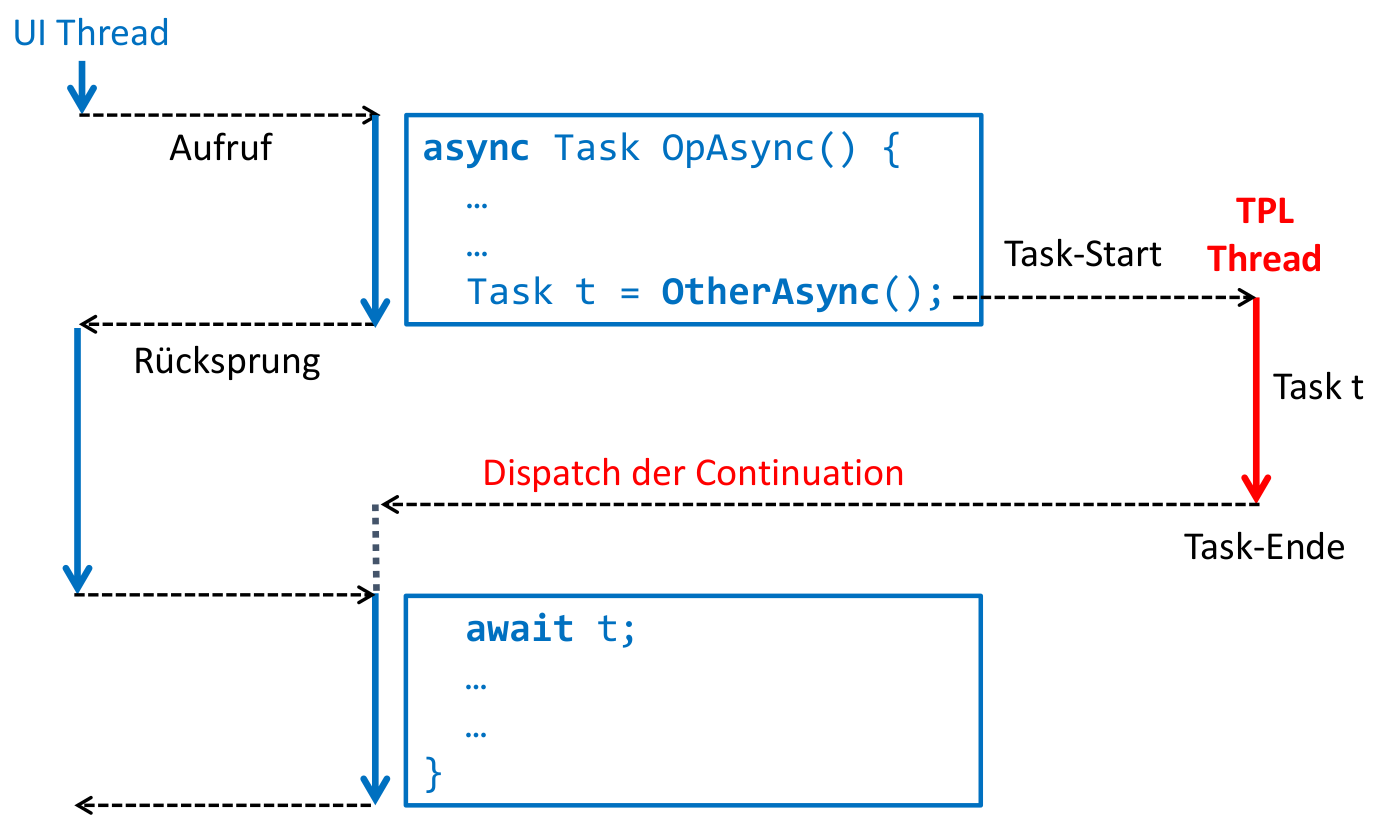

Async / await

public async Task<int> LongOperationAsync() { }

Task<int> task = LongOperationAsync();
OtherWork();
int result = await task;
  • async-Methode muss await enthalten (gibt Kette)
  • Bis zu await wird alles synchron, nacher asynchron (beliebiger Thread, ausser wenn Aufrufer UI-Thread ist)

Memory Models

  • Optimizer kann Code-Ablauf nicht-deterministisch ändern, wenn zwei Statements unabhängig voneinander sind ("Weak Consistency")

Java

  • volatile ist wie Barriere: Alle änderungen vor dem Zugriff auf volatile-Variable werden für andere Threads sichtbar, die auf diese Variable zugreifen

Atomic Operations

  • Kann mit getAndSet(newValue) atomar alten Wert lesen und neuen Wert setzen
  • compareAndSet(boolean expect, newValue): Atomares lesen und setzen mit Condition
    • Wenn Variable expected Wert hat, wird neuer Wert gesezt und true returned
  • Atomic Klassen gibt es auch für Integer, Long und Referenzen
  • Java 8: var.updateAndGet(old -> calculateChanges(old))

.NET

Volatile Read / Write

  • Volatile Read: Bleibt garantiert vor den nachfolgenden Zugriffen
  • Volatile Write: Bleibt garantiert nach den vorherigen Zugriffen
  • Thread.MemoryBarrier() verhindert Umordnung

Actor Model

  • Actors sind aktiv und kommunizieren asynchron über Channels miteinander
  • Actors wissen selbst nichts voneinander, können aber neue Actor kreieren
  • Kein shared memory, d.h. Actors können auch auf verschiedenen Nodes laufen
  • Synchrones Senden und Empfangen möglich, aber Deadlock/Starvation-Gefahr!
ActorSystem system = ActorSystem.create("System");
ActorRef printer =
    system.actorOf(Props.create(NumberPrinter.class));
for (int i = 0; i < 100; i++) {
    printer.tell(i, ActorRef.noSender());
}
system.shutdown();

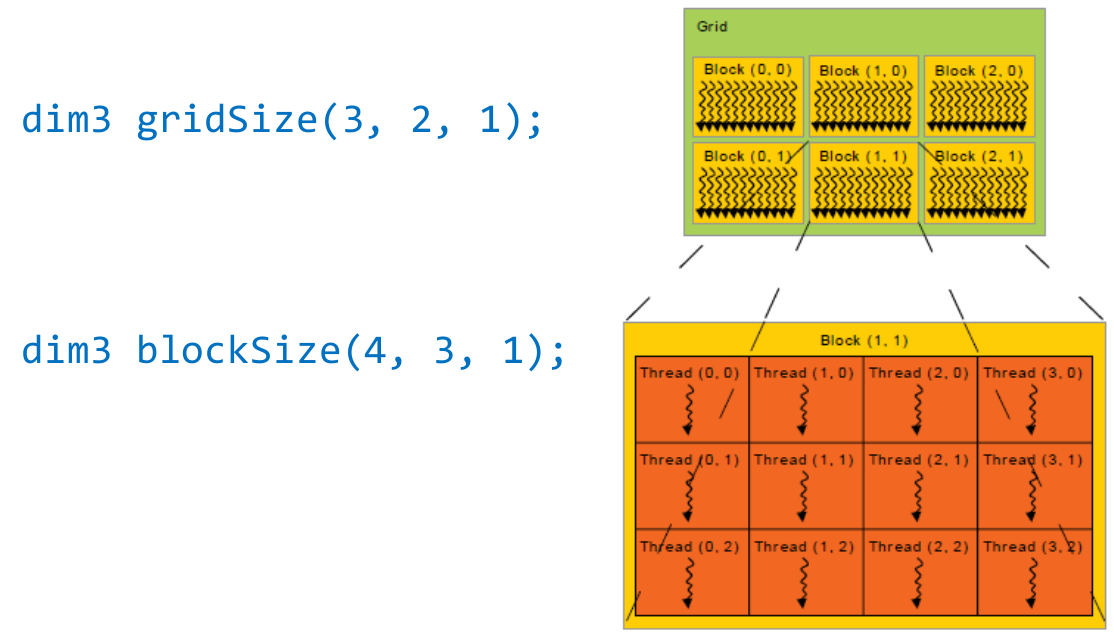

CUDA

void CudaVectorAdd(float* A, float* B, float* C, int N) {
    size_t size = N * sizeof(float);
    float *d_A, *d_B, *d_C;

    cudaMalloc(&d_A, size);
    cudaMalloc(&d_B, size);
    cudaMalloc(&d_C, size);

    cudaMemcpy(d_A, A, size, cudaMemcpyHostToDevice);
    cudaMemcpy(d_B, B, size, cudaMemcpyHostToDevice);

    int blockSize = 512; // multiple of 32!
    int gridSize = (N + blockSize - 1) / blockSize;
    VectorAddKernel<<<gridSize, blockSize>>>(d_A, d_B, d_C, N);

    cudaMemcpy(C, d_C, size, cudaMemcpyDeviceToHost);
    cudaFree(d_A); cudaFree(d_B); cudaFree(d_C);
}
  • __syncthreads() dient als Barriere, aber nur innerhalb eines Blocks!

  • Ein Block wird intern zu Warps (zu je 32 Threads) zerlegt
  • Alle Threads in einem Warp führen gleiche Instruktionen aus (SIMD)
  • Ein Block läuft immer auf einem Streaming Prozessor
  • Falls ein Warp auf Speicher wartet, führt Streaming Multiprocessor einen anderen Warp aus
  • Coalescing: Memory-Zugriffe werden in Memory-Bursts ausgeführt. Daher immer möglichst Speicher am gleichen Ort zusammen abrufen

Cluster Parallelisierung

  • Starten: mpiexec -n <nOfNodes> program
  • Alle Prozesse starten und terminieren synchron
  • Prozesse können mit Communicator messages senden und empfangen mit einer Nummer als "tag"
  • Send() und Receive() sind blocking!
  • Allreduce() ist eine Barriere und gibt jedem Prozess das Gesamtergebnis zurück
  • Reduce(): Nur ein Prozess sieht das Gesamtresultat (per Parameter angegeben)

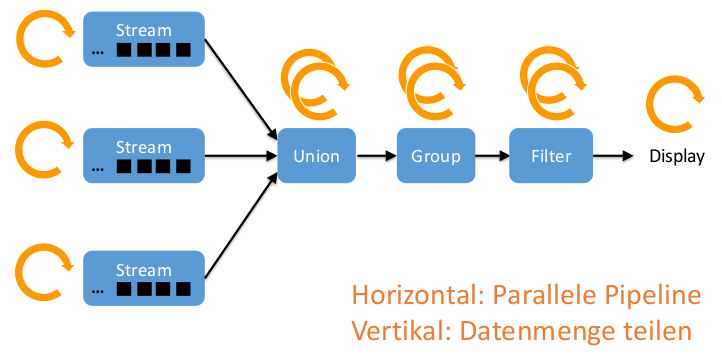

Reactive Programming

  • Im Gegensatz zu "normalem" (P)LINQ (Pull) sind die Datenquellen aktiv und "Pushen" die Daten durch die Pipeline

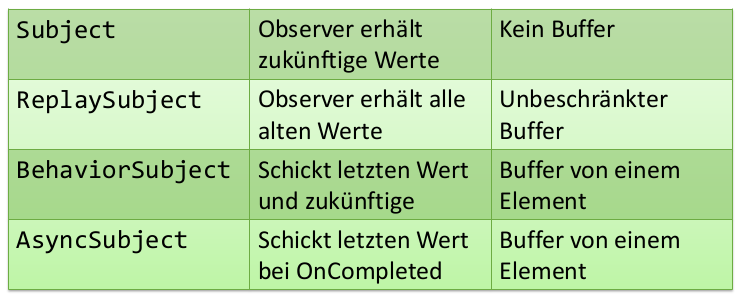

  • Jedes Subject (ausser Anfang und Ende) ist Observer des Vorgängers und Observable des Nachfolgers

  • Parallel ausführen:
collection.ToObservable().ObserveOn(TaskPoolScheduler.Default);
  • Für GUI-Thread DispatcherScheduler.Current verwenden

  • Hot Observables: Notifizieren spontan auch ohne Observers, z.B. Timer, Intervall

  • Cold Observables: Notifizieren on request und erst bei Anmeldung des Observers, z.B. Range, Generate

Warning

Vorsicht bei Seiteneffekten und Warteabhängigkeiten in Observer (Race Conditions / Deadlocks)!

Software Transactional Memory

  • Unterschied zu Monitor Lock
    • Deskriptiv - es wird nur beschrieben, was atomar ist
    • Keine Deadlocks, keine Race-Conditions (Starvation noch möglich!)
  • Transaktionen können verschachtelt werden ohne Deadlock-Gefahr (Commit erst bei Top-Level-Transaktion)
  • Optimistic Concurrency: Transaktion wird bei Konflikten (oder Exceptions) abgebrochen
  • Wird Hardwareseitig von Intel unterstützt
  • Wenn gewartet werden muss, STM.retry() aufrufen
  • Generell wird kein IO unterstützt
  • Write Skew: Anhand des Anfangsstatus werden Entscheidungen getroffen, während ein anderer Thread dies ändert (Isolationsfehler)
    • in Scala STM korrekt gelöst, in anderen Systemen mit einfacher Snapshot-Isolation aber nicht!
